Durable FM Approval FFU Fan Filter Unit , 2 * 2 Feet Portable Hepa Filter Unit

Suzhou Indair indoor air technology co.,ltd

Durable FM Approval FFU Fan Filter Unit , 2 * 2 Feet Portable Hepa Filter Unit

Brand Name : Indair

Model Number : ID-FFU-003

Certification : CE,UL,FM,ISO

Place of Origin : CHINA

MOQ : 1

Price : negotiable

Supply Ability : 1000 unit per workday

Packaging Details : Standard export packing (Plastic Bag+foam+Carton+Wooden case)

Size : 575*575

Control : DC Motor FFU,5 speed control、system control

Normal Power Dissipatio : 75-98w

Noise dB : ≥42

HEPA efficiency : 99.995%(@0.3μm)/99.9995%(@0.12μm)

Supply Power : AC,220V/50Hz

Contact Now

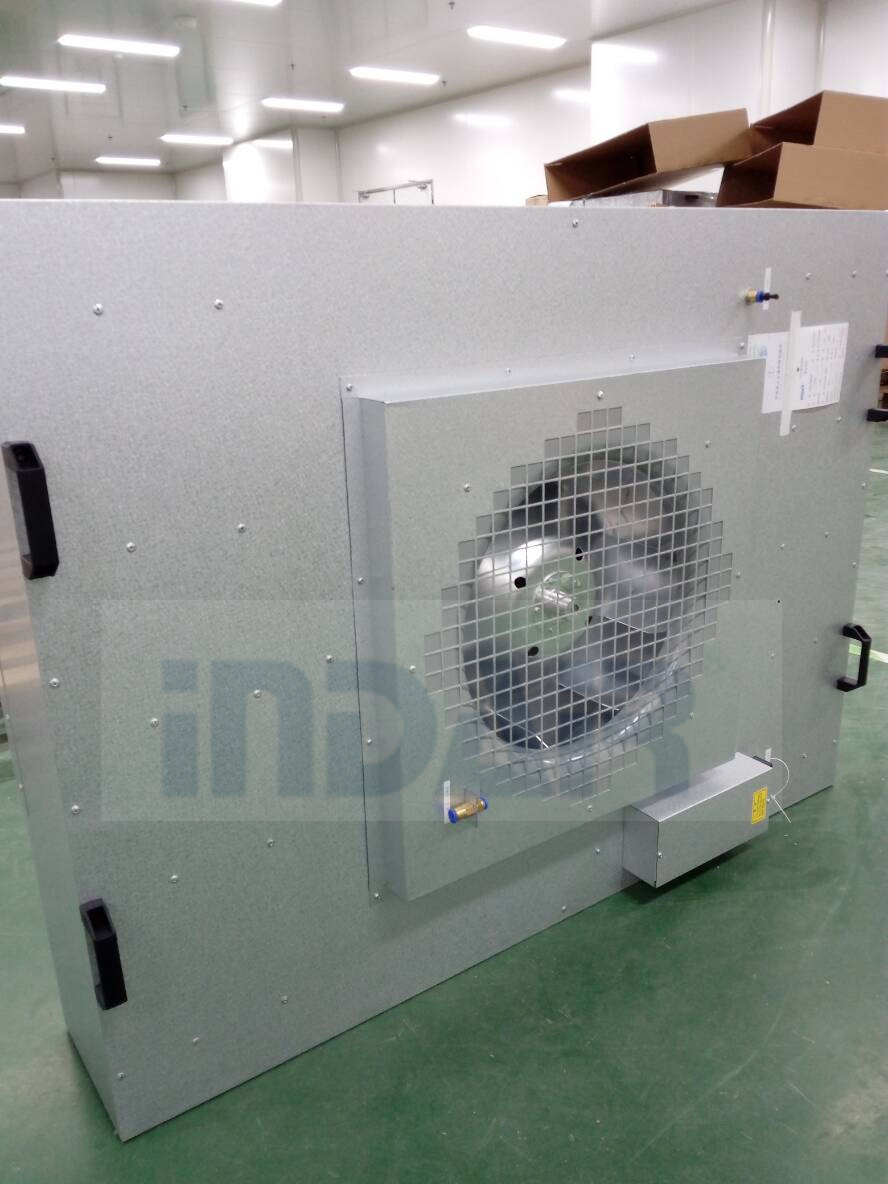

2*2 feet FFU Fan Filter Unit on the Ceiling with HEPA filter anti-explosion motor FM approval for Cleanroom

Features:
1. Wind speed: 0.35m/s, 0.45m/s;
2. Noise:49-63dBA;
3. Power: 220V, 50Hz;
4. Highly efficient filter (filtration efficiency is 99.99%);
5. Material: armor plate, stainless steel;
6. Adjustable speeds;
7. Excellent performance ;
8. Using a highly-efficient centrifugal air blower;
9. Durable, low noise, low vibration;
10. Free maintenance for one year

SupplyAbility:

1000 Set/Sets per Day

Packaging Details

Standard export packing (Plastic Bag+foam+Carton+Wooden case)

Delivery Time

13days

Port: Shanghai

Lead Time 13days


Description:
Fan filter unit (FFU) is air cleaning equipment to supply purified air to the clean room for manufacturing semiconductor, liquid crystal, etc. The installation space is the system ceiling grid. For a large clean room, the number of required FFU is from several hundreds to several thousands.

Concept of FFU development:
1. To reduce running cost by saving energy;
2. To reduce construction cost and term by thin, light and compact structure;
3. To reduce initial cost by total design of clean room including noise spec. etc;
4. We development FFU units basing upon the above concept to meet all the requirements for constructing, operating and maintaining clean rooms.

Advantage of clean room with FFU:
1. The construction period can be shortened;
2. The degree of cleanness from class 10 to class 1000 can be set and the degree of cleanness can be set at each area;
3. Because the back in the ceiling is a low-pressure, the potential of the leakage is low;
4. Bay method or through the wall method is possible by the arrangement of layout of FFU;
5. The velocity of the air flow can be set at each area;
6. Flexible increase or change of the clean room is possible by the arrangement of FFU.

Options available:

  1. ULPA filter (99.9995 @0.1μm)
  2. stainless steel or AL case
  3. super thin design
  4. other requirements

The advanced test instruments to make sure our products be excllent and ensure our product with advanced techonlogy.

1. MPPS

2, DOP TEST INSTRUMENTS

3, All performance test instruments

4, Nosie room to make sure the noise of our FFU is lower than any other factory

5, Scan test instrument

6, Partical counter

7, Air Capture Hood

Item FFU0612G/S/A-EC-H/U-E FFU1212G/S/A-EC-H/U-E
Size(mm) 1175×575×280 1175×1175×320
Speed(m/s) 0.35 0.4 0.45 0.35 0.4 0.45
Overbottom Pressure(Pa) 50 120 50 120 50 120 50 120 50 120 50 120
Normal Power Dissipatio(W) 75 98 80 105 85 115 110 165 145 200 190 245
Max Power Dissipation(W) 200 200 200 320 320 320
Noise dB(A) 42 44 46 48 49 51 50 53 52 55 55 57
HEPA efficiency 99.995%(@0.3μm)/99.9995%(@0.12μm)
HEPA Size (mm) 1170×570×70 ( 90 ) 1170×1170×70 ( 90 )
Supply Power AC,220V/50Hz
Control DC Motor FFU,5 speed control,system control
  Aluminium zinc plate,aluminum,SUS304,SUS430,SUS201

Durable FM Approval FFU Fan Filter Unit , 2 * 2 Feet Portable Hepa Filter Unit
